Buying an electric vehicle is exciting. A common question that comes with it is: Does my EV charger need a dedicated circuit? Simply put, for most home EV charging setups, especially for faster charging options, the answer is yes. Understanding the importance of an EV charger dedicated circuit is crucial for ensuring the safety, efficiency, and reliability of your home charging. It’s not just about avoiding tripped breakers; it’s about protecting your home and electrical system. We’ll delve into why a dedicated circuit is key and how to prepare your home for electric vehicle charging.

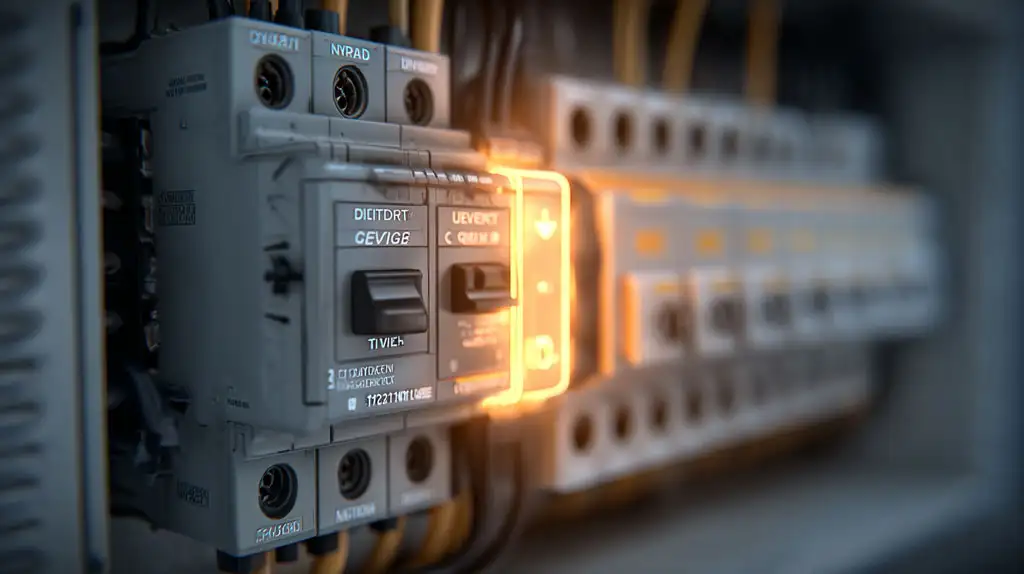

A dedicated circuit is like a private highway built specifically for one electrical appliance. It means that from your home’s electrical panel to the outlet or charging station, only this one device uses that circuit. This circuit has its own circuit breaker, which is solely responsible for protecting this device.
If you don’t use a dedicated circuit and instead plug your EV charger into a circuit shared with other appliances, some problems can occur. The most common is a tripped circuit breaker. When the total current on a circuit exceeds its designed capacity, the breaker will cut off power to prevent the wires from overheating. This is like a small road that can’t handle too many vehicles at once.
More seriously, continuous overloading can lead to overheating wires, potentially causing a fire. EV chargers operate at high power for extended periods, placing significant demands on the electrical circuit. Therefore, an EV charger dedicated circuit is crucial for ensuring home electrical safety.
Authoritative standards like the National Electrical Code (NEC) have clear regulations for EV charging equipment. These codes are designed to ensure the safe installation and operation of electrical systems. Typically, the NEC requires Level 2 chargers used for EV charging to be installed on a dedicated circuit. This is to prevent overloading and potential electrical hazards. Complying with these codes is not only for safety but also for passing electrical inspections.”

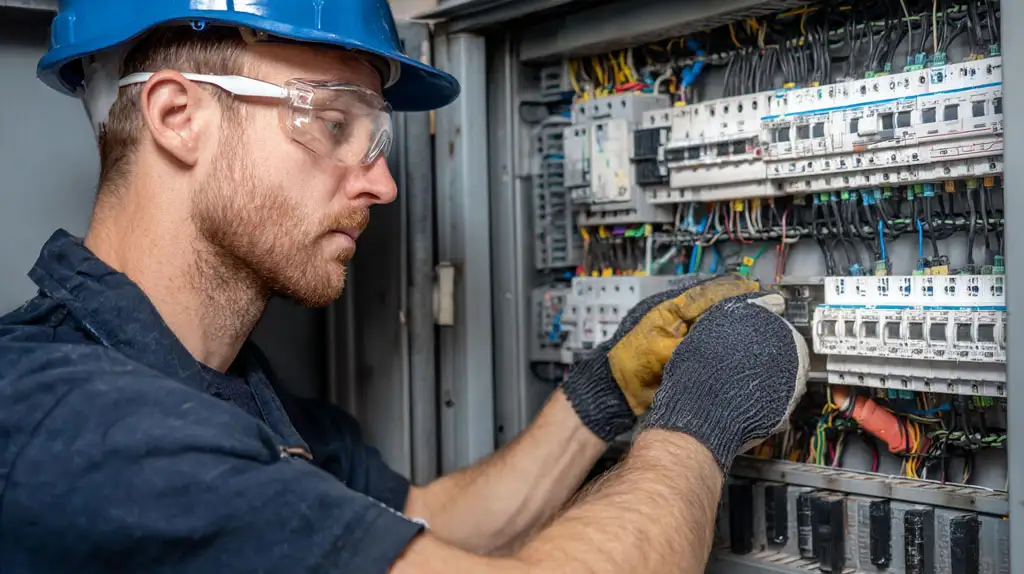

Yes, you typically need to install a separate breaker for your home’s EV charger. This separate breaker is a core component of a dedicated circuit. It ensures the charger has its own independent power protection and doesn’t compete for electricity with other appliances. This is crucial for preventing circuit overloads and potential hazards.
When you charge your electric vehicle, the charger draws a significant amount of power for extended periods. If it shares a breaker with other high-power appliances like a dishwasher, microwave, or air conditioner, it can easily cause the breaker to trip, interrupting charging. More importantly, this also puts unnecessary stress on your home’s wiring, increasing the risk of overheating and even fire. Therefore, a dedicated breaker is key to ensuring safe and efficient charging.
The table below lists common EV charging levels and their typically required breaker sizes:
Home electric vehicle chargers primarily fall into two types: Level 1 and Level 2. Their circuit requirements differ significantly. Understanding these differences is crucial for planning your home charging setup.
Level 1 chargers use standard 120-volt AC (V) outlets, which are typically the three-prong outlets found throughout your home. They usually come with the EV and can be plugged directly into a wall outlet.
Characteristics: This is the slowest charging speed, adding approximately 3-5 miles of range per hour.
Circuit Requirements: In most cases, Level 1 chargers do not require a dedicated circuit for an EV charger. However, if the outlet is on a circuit shared with other high-power appliances (like refrigerators or microwaves), it can still lead to overloading. For optimal safety and performance, even for Level 1 charging, it’s recommended to connect it to an outlet that doesn’t share a circuit with other high-power devices.
Level 2 chargers use 240-volt AC, the same voltage used by your clothes dryer or electric stove. They require special outlets and typically need professional installation.
Characteristics: Charging speeds are significantly faster, adding 20-60 miles of range per hour. This is the preferred home charging method for most EV owners.
Circuit Requirements: Level 2 chargers almost always require a dedicated circuit. This is because they draw a substantial amount of current for extended periods (typically 20 amps to 80 amps). For example, a typical 32-amp Level 2 charger needs a 40-amp dedicated circuit breaker and corresponding wiring.
The table below summarizes the main differences in circuit requirements for Level 1 and Level 2 chargers:
Yes, the dedicated circuit for an EV charger can come from a sub-panel. A sub-panel is a smaller electrical panel that branches off from the main electrical panel, typically used to supply power to specific areas of a house (like a garage, basement, or addition). If your main electrical panel doesn’t have enough space or capacity, or if the charging station is installed far from the main panel, then drawing a dedicated circuit from a sub-panel is a viable option.
Installing a sub-panel requires professional electrical knowledge and strict adherence to electrical codes. The sub-panel must have its own main breaker, and its total capacity must be sufficient to support all connected devices, including the EV charger dedicated circuit. When considering using a sub-panel, be sure to consult a licensed electrician. They will evaluate your existing electrical system and determine the best and safest solution.
If your main electrical panel doesn’t have enough space to install a new EV charger dedicated circuit, or if its total capacity isn’t sufficient to support the additional EV charging load, you have several options. This often happens in older homes that weren’t originally designed with the high power demands of modern appliances in mind.
Upgrade the Main Electrical Panel: This is the most common solution. An electrician can install a new, larger capacity electrical panel for you, providing more breaker space and a higher total amperage. This is usually the most expensive option but offers ample room for future electrical expansion.
Install a Sub-Panel: As mentioned above, installing a sub-panel closer to the charging station can solve the problem of insufficient space in the main electrical panel. The sub-panel will draw power from the main panel and then distribute it to the charging station and other devices.
Smart Charging Solutions: Some smart chargers have load management features. They can monitor your home’s total power consumption and automatically reduce charging speed during peak usage by other appliances to prevent overloading. This might not require an electrical panel upgrade, but charging speed will be limited.
The table below summarizes solutions when electrical panel space is insufficient:
Preparing your home’s electrical system for your EV charger requires some planning and possibly professional help.
Before installing a Level 2 EV charger dedicated circuit, you need to check your home’s electrical panel. The electrical panel is the “heart” of your home’s electrical system. You need to confirm:
Is there enough space: Does your electrical panel have empty breaker slots to install a new high-capacity circuit breaker?
Is there enough capacity: Is your electrical panel’s total capacity sufficient to support the additional load required by an EV charger? For example, if your electrical panel is 100 amps and you want to install a 50-amp charger, this could overload the panel, especially when other appliances are running simultaneously. Many older homes may need to be upgraded to a 200-amp electrical panel.
Panel location: Is the electrical panel close to where you plan to install the charging station? This will affect the complexity and cost of wiring.
If you are unsure how to check, be sure to consult a professional electrician.
Installing an EV charger dedicated circuit is a complex electrical project that must be completed by a licensed professional electrician. Choosing the right electrician is crucial. Here are some questions you can ask an electrician:
Do they have experience installing EV charging stations?
Are they familiar with local electrical codes and permitting requirements?
Will they provide a detailed quote, including material and labor costs?
Do they offer a warranty?
A professional electrician will evaluate your home’s electrical system, recommend suitable charger and circuit solutions, and ensure the installation complies with all safety and code requirements. They will also help you understand the overall EV charging station design to ensure it meets your needs and future expansion possibilities.
Den charging station cost for installing an EV charger dedicated circuit and a Level 2 charging station varies due to several factors, including:
Cost of the charger itself: Charger brands and power levels vary in price. You can refer to Linkpower home EV charger for specific examples.
Wiring distance: The longer the distance from the electrical panel to the charging station, the higher the wiring cost.
Electrical panel upgrade: If your electrical panel needs an upgrade, this will be an additional significant expense.
Labor costs: Electrician rates vary by region.
Permit fees: Electrical permit fees may be required by local governments.
Overall, the cost of installing a Level 2 charging station can range from a few hundred to several thousand dollars. Many regions and utility companies offer incentives or rebate programs for EV charging installations, which are worth researching.
Furthermore, understanding EV Charging Standards is also important. For example, SAE J1772 is the common standard for EV charging connectors in North America. Ensure that the charger you choose and its installation comply with these standards to guarantee compatibility and safety.
| Region/Brand | Primary AC Standard | Primary DC Standard | Features & Notes |
|---|---|---|---|
| North America | SAE J1772 (Type 1) | CCS1 | J1772 is AC standard. CCS1 is DC extension. Tesla pushing NACS adoption. |
| Europe | IEC 62196 Type 2 | CCS2 | Type 2 supports 3-phase AC. CCS2 is dominant DC standard. |
| China | GB/T 20234.2 | GB/T 20234.3 | China’s national standard with separate AC/DC connectors. |
| Japan | SAE J1772 (Type 1) | CHAdeMO | CHAdeMO is Japanese DC standard, though CCS is gaining. |
| Tesla | NACS | NACS | Integrated AC/DC interface. Open to other manufacturers (Ford, GM). |
It is strongly not recommended to use an extension cord for charging an electric vehicle, especially with Level 2 chargers. Extension cords typically cannot handle the sustained high current required for EV charging and can lead to overheating, fire, or damage to the charger and vehicle. Always plug the charger directly into a dedicated outlet.
The time it takes to install an EV charger dedicated circuit depends on the complexity of your home’s electrical system and the electrician’s schedule. Typically, if the electrical panel has sufficient capacity and space, installation may only take half a day to a full day. If an electrical panel upgrade is needed, it could take longer.
Yes, usually. Most local governments require permits and inspections for electrical work to ensure that the installation complies with local electrical codes and safety standards. A licensed electrician will help you handle the permit application.
If your electrical panel is too old or lacks sufficient capacity to support a new EV charger dedicated circuit, you may need to upgrade the electrical panel. This is a more complex project involving replacing the entire electrical panel, which may require more time and expense. An electrician will assess and provide the best solution.
Installing an EV charger for your electric vehicle, especially a Level 2 charger, requires a dedicated circuit. This is not just for charging speed but also for your home’s electrical safety and the long-term health of your system. While it may require some initial investment, it is worthwhile compared to potential electrical hazards and inconveniences.
Always choose a licensed professional electrician to evaluate your home’s electrical system and perform the EV charger dedicated circuit installation. They will ensure that all work complies with local electrical codes and safety standards. With proper planning and professional installation, you can enjoy the convenience and safety of charging your electric vehicle at home with peace of mind.
Authoritative Sources
National Fire Protection Association (NFPA) – Electrical Safety Foundation International (ESFI): https://www.nfpa.org/Public-Education/By-topic/Home-safety/Electric-vehicles
U.S. Department of Energy – Electric Vehicle Charging Basics: https://www.energy.gov/eere/electricvehicles/charging-electric-vehicles
Underwriters Laboratories (UL) – EV Charging Safety: https://www.ul.com/resources/electric-vehicle-charging-safety
SAE International – J1772 Standard: https://www.sae.org/standards/content/j1772_201701/
